Square IR Sensor Touchless/No Touch Exit Button Wave to Exit Switch
Description
Camel Security SNT886 is a square wide size no touch to exit button with 304 stainless steel plate for indoor use. With touchless sensitive switch unit designed for use with access control system or connect to electric locks. It is an ideal replacement for conventional push buttons, door release button etc. SNT886 series no touch exit button is ideal for us in sanitary applications such as cleanrooms, hospitals, labs and some industry use.
Technical Parameter
| dimension | 86L*86W*25H(mm) |
| input | 3A @ 12-24V DC |
| output | NO/NC/COM |
| standard structure: | 304 stainless steel plate, steel button |
| working temperature | -20‐+55℃ (14-131F) |
| working humidity | 0-95% (non-condensing) |
| LED indicator | white LED indicator Power Off Blue LED Indicator Standby Green LED Indicator Active |
| weight | 0.14kg |
Key Features of SNT886 touchless exit button
1, the switch can be activated by a simple hand wave or approach-sanitary and easier access.
2, NO and NC output for all kinds of locks
3, no moving parts - more durable
4, two LED indicator provide visual confirmation for standby (Blue) and operated/actived (Green)
5, built-in sounder buzzer
6, single gang plate fits flush box, we also provide ANSI Size 115*70 plate, Narrow Size 115*40 plate and 86*50 plate, surface mounting backbox
7, 9-12V DC
8, 30mA current consumption when standby and 60mA when actived
9, CE RoHS Certificated
10, 3 years warranty
11, experienced sales person with full support
Product Name
no touch to exit button, rex touchless, touchless rex, no touch request to exit, touchless sensor button, touchless sensitive, exit button

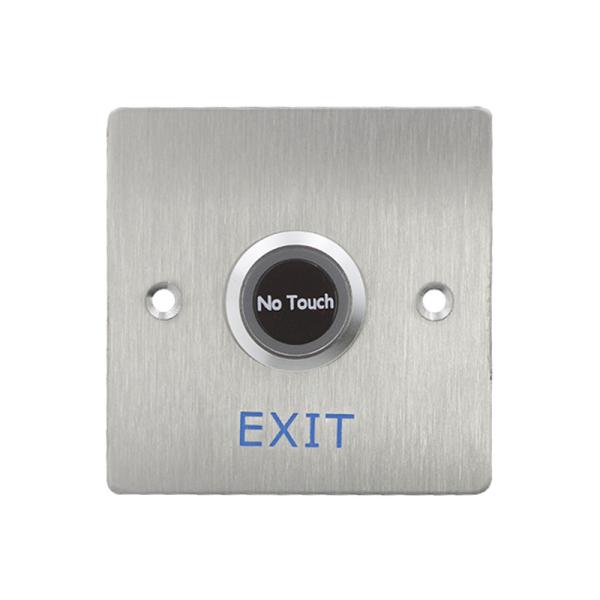

Product Pictures
|
|
Access Control Touchless Exit Button With 304 Stainless Steel Plate Images
|
