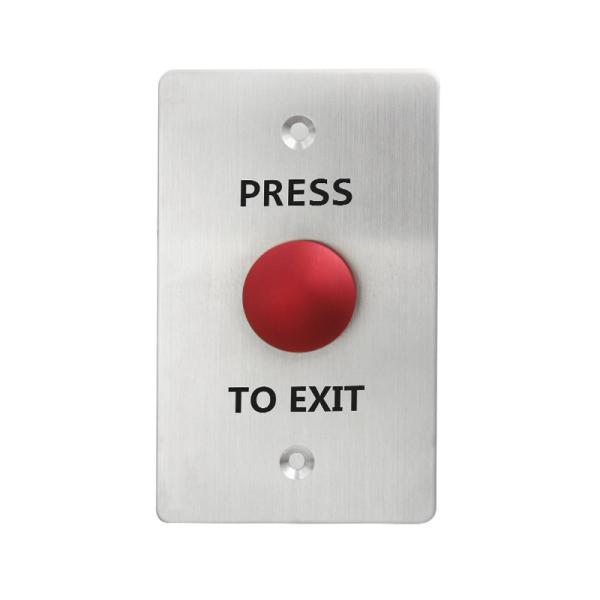

Red Mushroom Exit Push Button for Door Access Control
Products name
push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box
Product Introduction
S870M3R mushroom door exit push button is using the 2mm thickness anti-vandal strong 304 stainless steel material with brushed and PRESS To EXIT Sign faceplate. Together with NO(normal open) NC (normal close) mushroom switch to realize its excellent performance. The mushroom color can be green or red, other colors available if required. Green mushroom is bright and eye-catch for peace. Red color is shining and alarm for emergency.
Key Advantages
1, mushroom buttons is bigger area for press, it is better choice for eye-catching and some industry application.
2, green or red colors options for many applications.
3, 304 stainless steel faceplate is light weight but strong and durable
4, brushed plate can be good scratch-resistant
5, 115W*70L (mm) size is popular and hot sell in Ameica markets
6, Eropean Size and narrow size also available, such as 86L*86W (mm) and 86L*50W (mm) and 115W*40L(mm)
7, micro-switch with N.O. (normal open) and N.C. (normal close) output contacts for all kinds of locks
8, color cabled indicated wire connection
9, M70 0r PG70 backbox / backcase available to make it install directly on the wall surface mount
10, 3 years warranty for you full support and after-sale services
11, CE RoHS listed
12, experienced sales team with fast prompt answer by email or online talk
Technical Parameter
| Product Name | Mushroom Press to Exit Button |
| Model Name | S870M3R |
| Size | 115W*70L*25H(mm) |
| Material | 304 stainless steel Faceplate, Mushroom Micro-switch Button |
| Lifetime | 500,000 Times Tested |
| Contacts | N.O./N.C./COM |
| Certification | CE RoHS |
| Standard Package | 100pcs/13kg/52*43*32cm/ctn |
Products Details Introduction for S850M3 Mushroom Press Button
|
|
Anti - Vandal Red Or Green Door Exit Push Button Micro Switch With Fireproof Material Faceplate Images
|
